DLE/1 ALCO-00018 – Distribution Line Earthing Kits

Distribution Line Earthing Kits are suitable for temporary earthing of conductors between 11 & 66kV.

The DLE/1 ALCO-00018 is complete with S9B & S9A clamps, aluflex lead & a terminal plate. The complete kit can be used with a fibreglass operating pole which enables the kit to be raised and attached to the conductor.

DLE/1 ALCO-00018 – Distribution Line Earthing Kits Includes

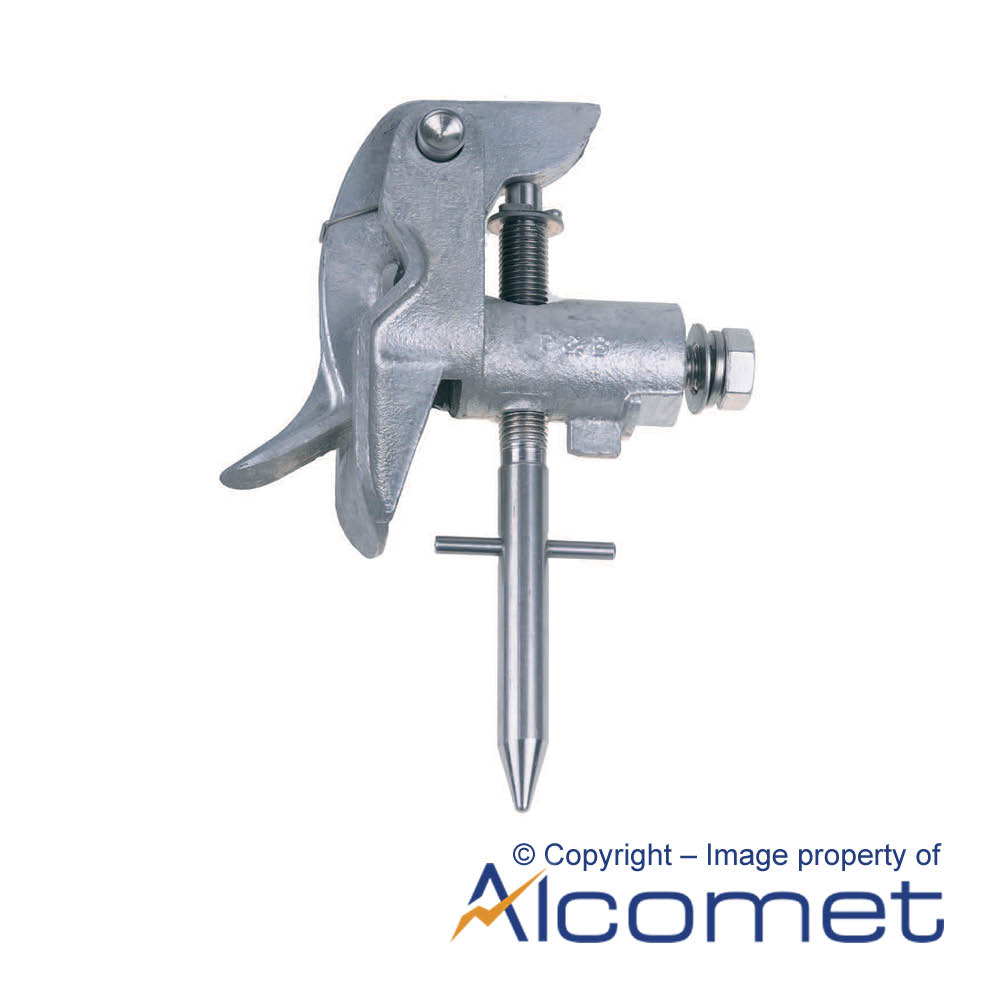

• 3 x S9B Short taper Line End Clamps
• 3 x 3m Long Arctic Orange 120sqmm Aluflex Leads

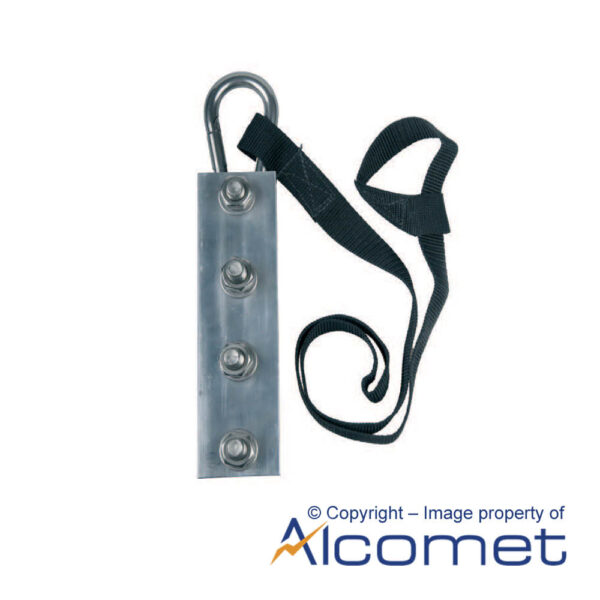

• 1 x Type C Terminal Plate
• 1 x 15m Long Arctic Orange 50sqmm Aluflex Lead

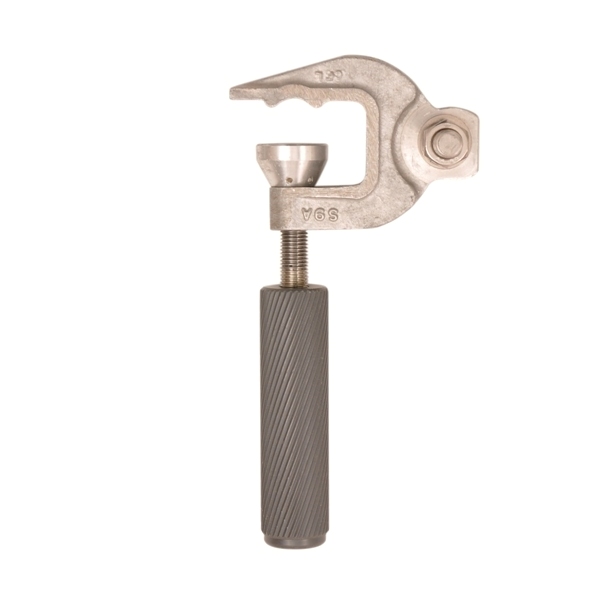

• 1 x S9A Short Handle Earth End Clamp

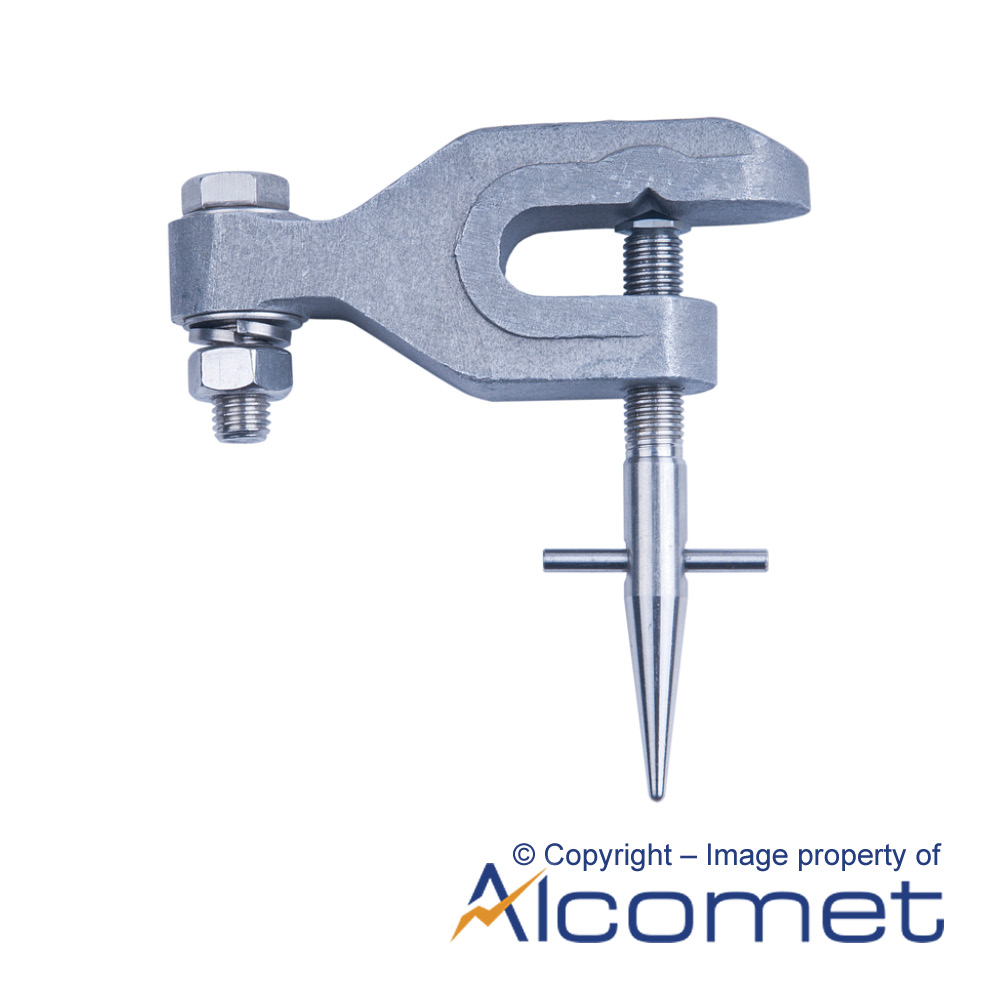

• 1 x CE10 Cross Arm Clamp
• 1 x 3m Long Arctic Orange 50sqmm Aluflex Lead

Short Circuit rating: 20kA/1s
