DLE/2 33kV Distribution Line Earthing Kit

Distribution Line Earthing Kits are suitable for temporary earthing of conductors between 11 & 66kV.

The 11kV kits for standard distribution line earthing is supplied with a S9B clamp & a parking bar as standard.

The complete kit can be used with a fibreglass operating pole which enables the kit to be raised and attached to the conductor. The DLE/2 kits are supplied with a cluster bar, rather than a terminal plate which can either be fitted to the operating pole via a strap, or hung from the cross arm.

DLE/2 33kV Distribution Line Earthing Kit Includes

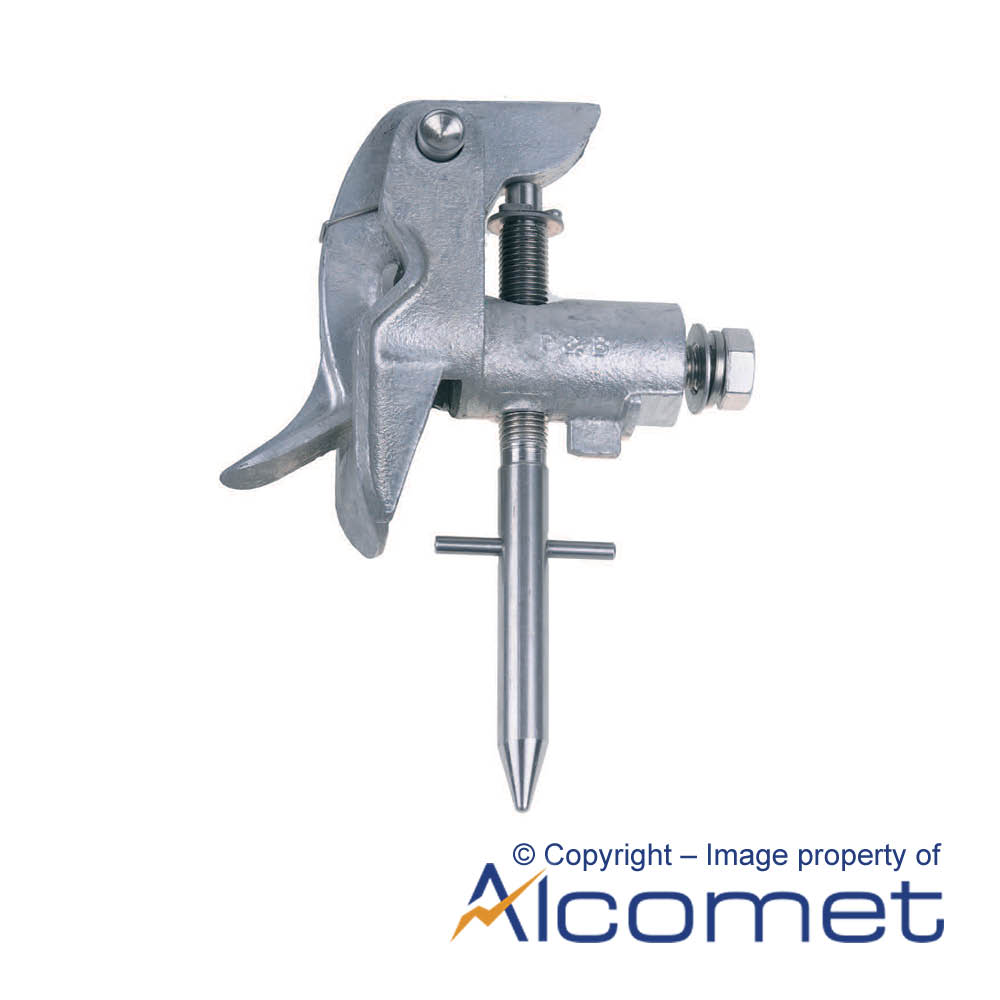

• 3x S9B Short Taper Line End Clamps
• 3 x 3m long Arctic Orange 120sqmm Aluflex Leads

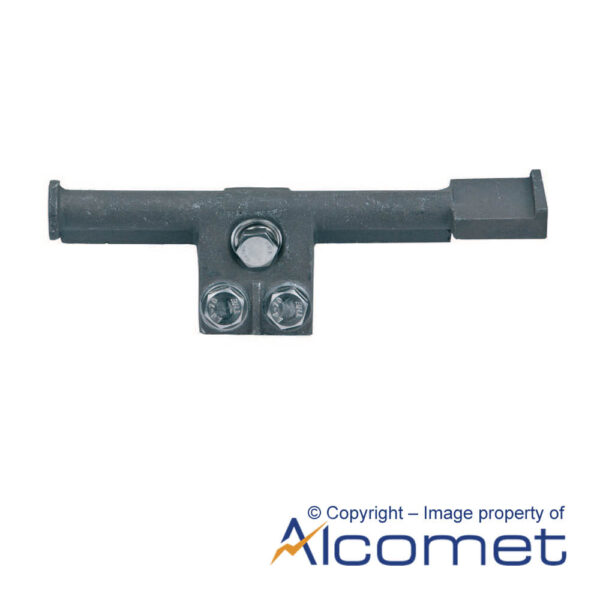

• 1 x Cluster Bar Type DLE/ CAC
• 1 x 15m Arctic Orange 50sqmm Aluflex Lead

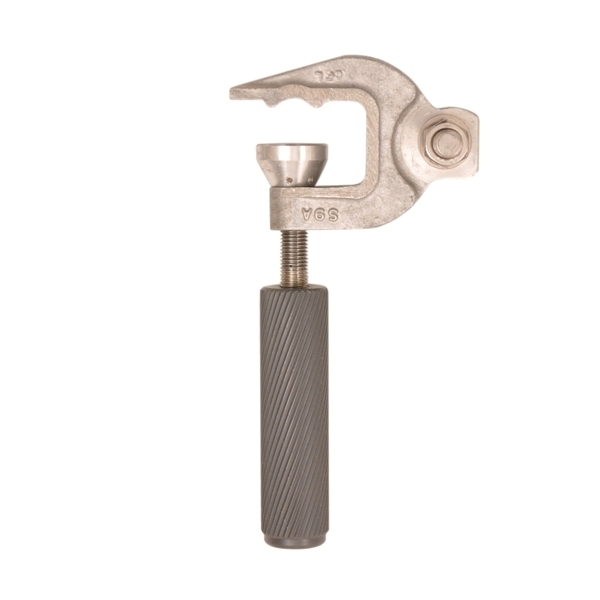

• 1x S9A Short Handle Earth End Clamp
• 1 x S9A Pointed Tip Cross Arm Clamp
• 1 x 3m Arctic Orange 50sqmm Aluflex Lead

Short Circuit Rating: 20kA/1s (phase to phase)
