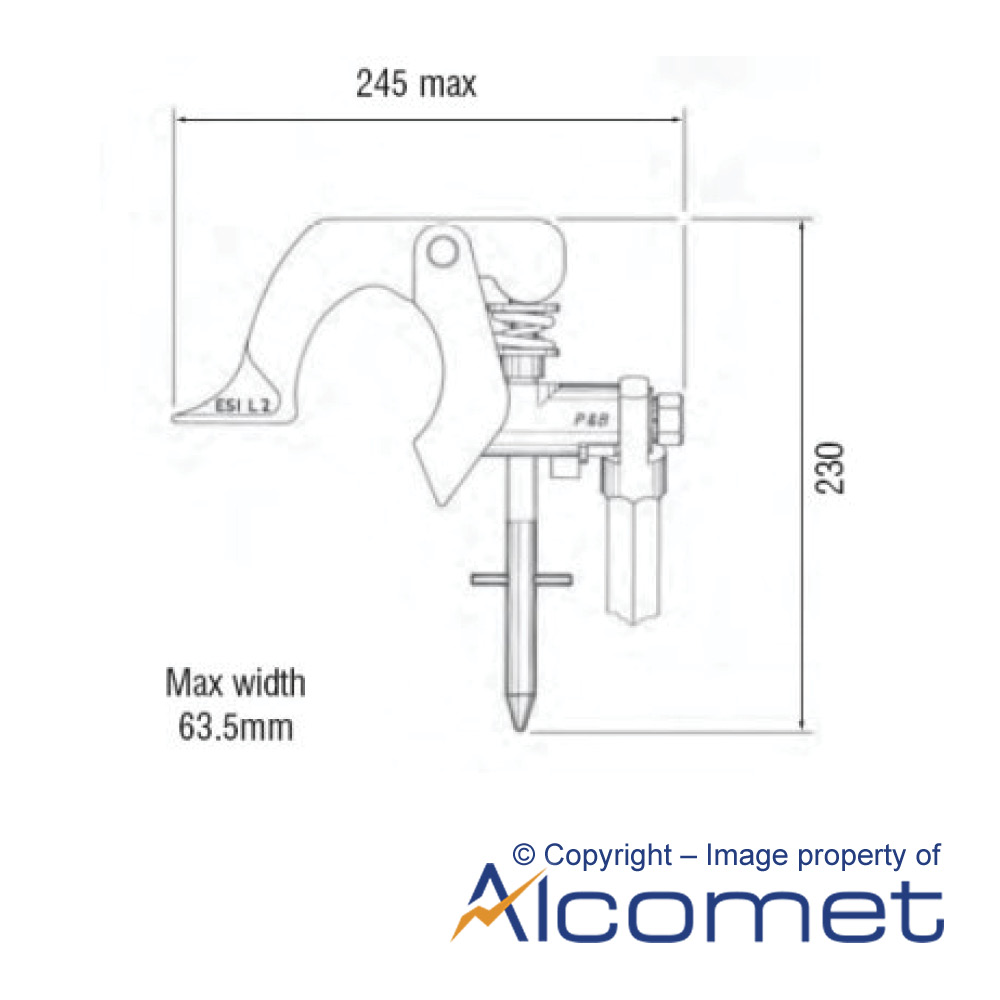

CE22B/ESI-L2 Line End Clamp

As part of our Portable Earthing range the CE22B/ESI-L2 is for application to clean or dirty copper or aluminium tube, within the range: 38-76mm diameter. Provision for attachment of one flexible lead.

NOTE:For attachment the operating pole should be rotated with normal firm hand pressure until a definite resistance to further movement is experienced.

Clamping Diameter: 38-76mm

Short Circuit Rating: 25kA/1s 17.5kA/2s

Max number of Leads: 1

Weight: 1.09kg
